FST300 General Purpose Inverter

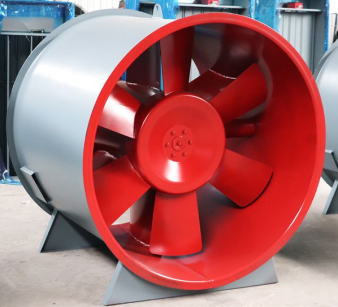

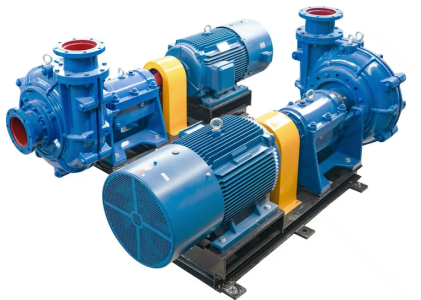

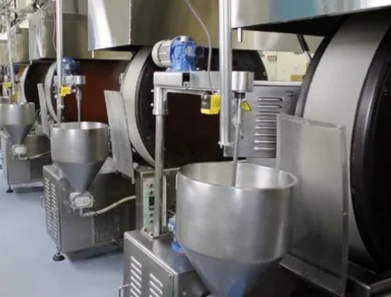

Application field: Food packaging machinery, conveyors, textile machinery, woodworking machinery, fans, pumps ... ...

Brand: FSTsystem

Certificate: CE, RoHS

Advantages

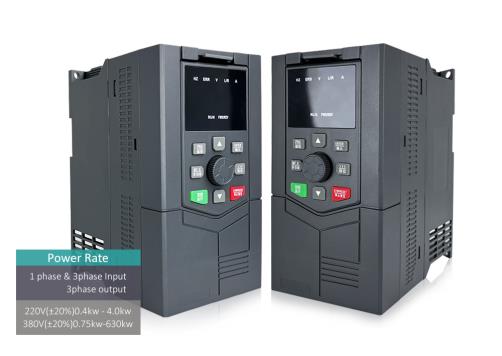

FST650S series is a high performance general purpose AC drives integrated with the most advanced open&closed-loop vector control (over 15kw optional). It can drive normal and multiple-frequency AC asynchronous induction motor with excellent control performance.It’s designed to be robust with large capacity for heavy duty and complicated motor driving applications. some of key functions are listed as below:

01. Starting torque:         G type 180% at 0 Hz ( FVC pattern); 150% at 0.5 Hz(SVC pattern)

                         P type          100% at 0.5 Hz

02. Speed adjustable range: 1: 100 (SVC pattern); 1:1000 (FVC pattern)

03. Speed accuracy: +/-0.5% (SVC pattern), +/-0.02% (FVC pattern);

04. Over load capability: G type 150% 1minute, 180% 3 seconds;

P type 120% 1 minute,150% 3 seconds;

05. Abundant frequency command sources;

06. DC breaking and Jog running

07. Ambient temperature: -10°C~50°C;

08. High precise torque constraint, process PID control, multi-speed control, simple PLC, AVR, contracting brake control, field

 weakening control, all sides protection, etc;

09. Online and offline auto-tuning of motor parameters can both performed;

10. Extremely short-time acceleration can be performed without any trip, such as 0.1s or 0s from 0Hz to 50Hz;

Note:150% current can be provided for 1 minute, 180% for 3 seconds. Higher overload rating is achieved by oversizing the drive.

Applications

FST650S drives are high performance series at FSTsystem. They offer SVC, FVC and V/f control, including voltage and frequency separated control, adaptable to various industrial applications, including extruders, rubber millers, injection molding machines, pipe bending machines, conveyance systems, winding machines, bridge cranes, stage lifting systems, glass tempering furances, fans, pumps, food packing machinery,etc.

Why choose FSTsystem variable frequency drive?

In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, FSTsystem, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, soft-starter, HMI, elevator drives,HAVC controller, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.

Production

In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.

Packaging and logistics

All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult FSTsystem logistics department for worldwide shipment services.

 * Low-power inverters are packed in cardboard box, and others are in plywood cases.

 * Plenty of transportation procurable globally in accordance with customer demand or FSTsystem expertise.

FSTsystem AC motor drives are able to replace AC drives and inverters of the following brands: , LS, Toshiba, Siemens, Lenze, Yaskawa, Mitsubishi, Delta, Hitachi, WEG and etc

Please leave us an inquiry for more details of our frequency inverters, like information of the model numbers, technical data, applicable application, pricing, distributor policy, lead time and/or customized functionality.
